ΩFIX – Triangles and ballasts for ballasted flat roofs

Brace for triangles - Aluminium

Patterned triangles for panel support

Concrete ballasts

Concrete ballast 6° gradient

Concrete ballast 10° gradient

Wind rod for triangles

Braces to be cut and drilled as needed.

←					→
	Code	Reference	L (m)	Dimensions:
+	FVT1291	FVA-CTR-3	3	30x5	\| \|
Specifications: Pieces per package: 1 Weight (kg): 1.22

Patterned triangles for panel support

TEKNOMEGA creates triangles based on project specifications and panel dimensions; you can get all inclinations.

TYPE I: Triangle with 3 corner profiles type 60x40x4. All three profiles must be drilled and cut to size.

TYPE II: Triangle with cathetic profiles made of angular profile and hypotenuse of double support profile. The double-supported profile is more robust and does not require custom-made holes.

The triangles must be made to measure based on the inclination of the system, the orientation and the dimensions of the panel. For further information, contact your sales representative.

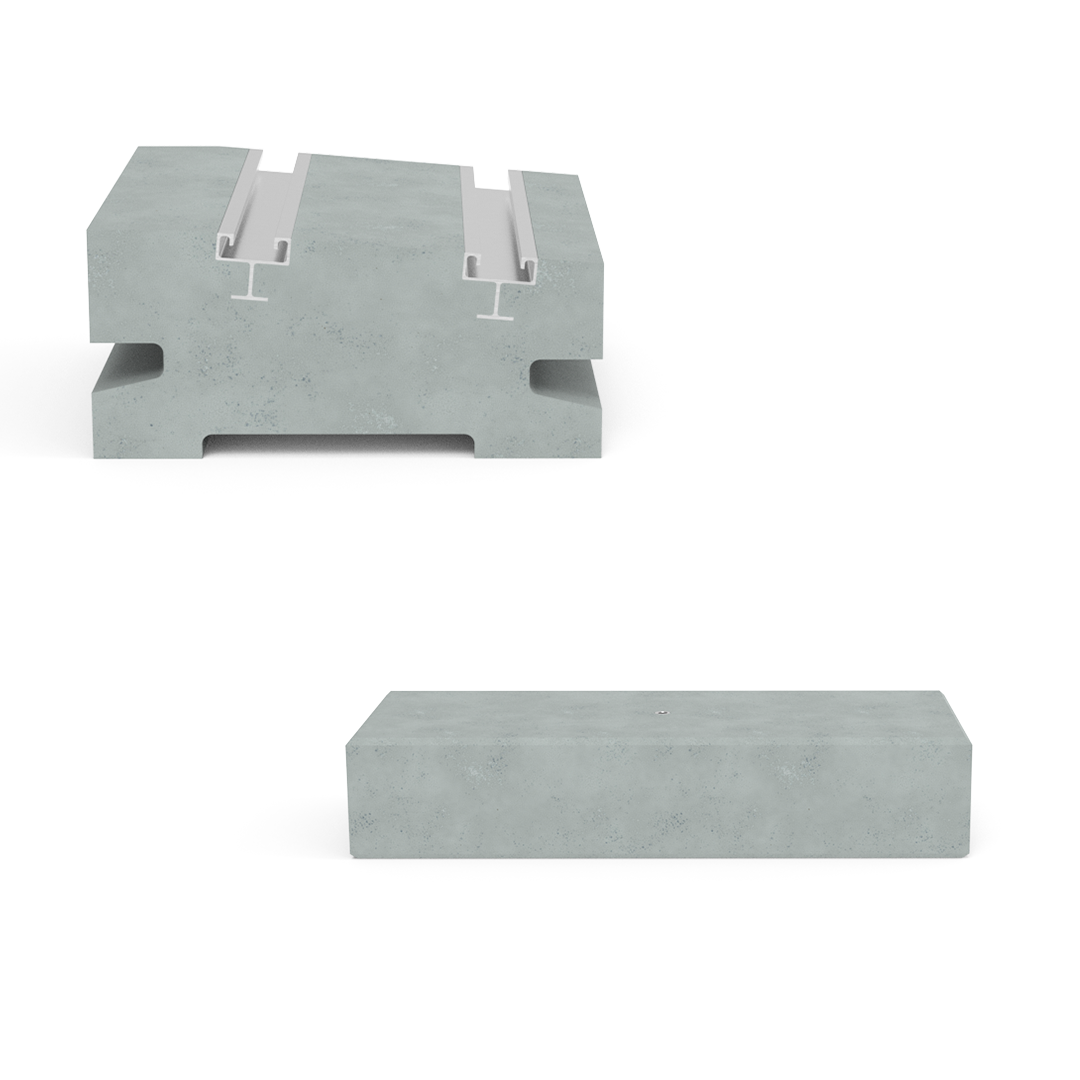

Concrete ballasts

Ballasts supplied with a central M8x30 insert.

←			→
	Code	Reference
+	FVT9454	FVV-ZVC-30	\| \|
Specifications: Pieces per package: 1 Weight (kg): 30

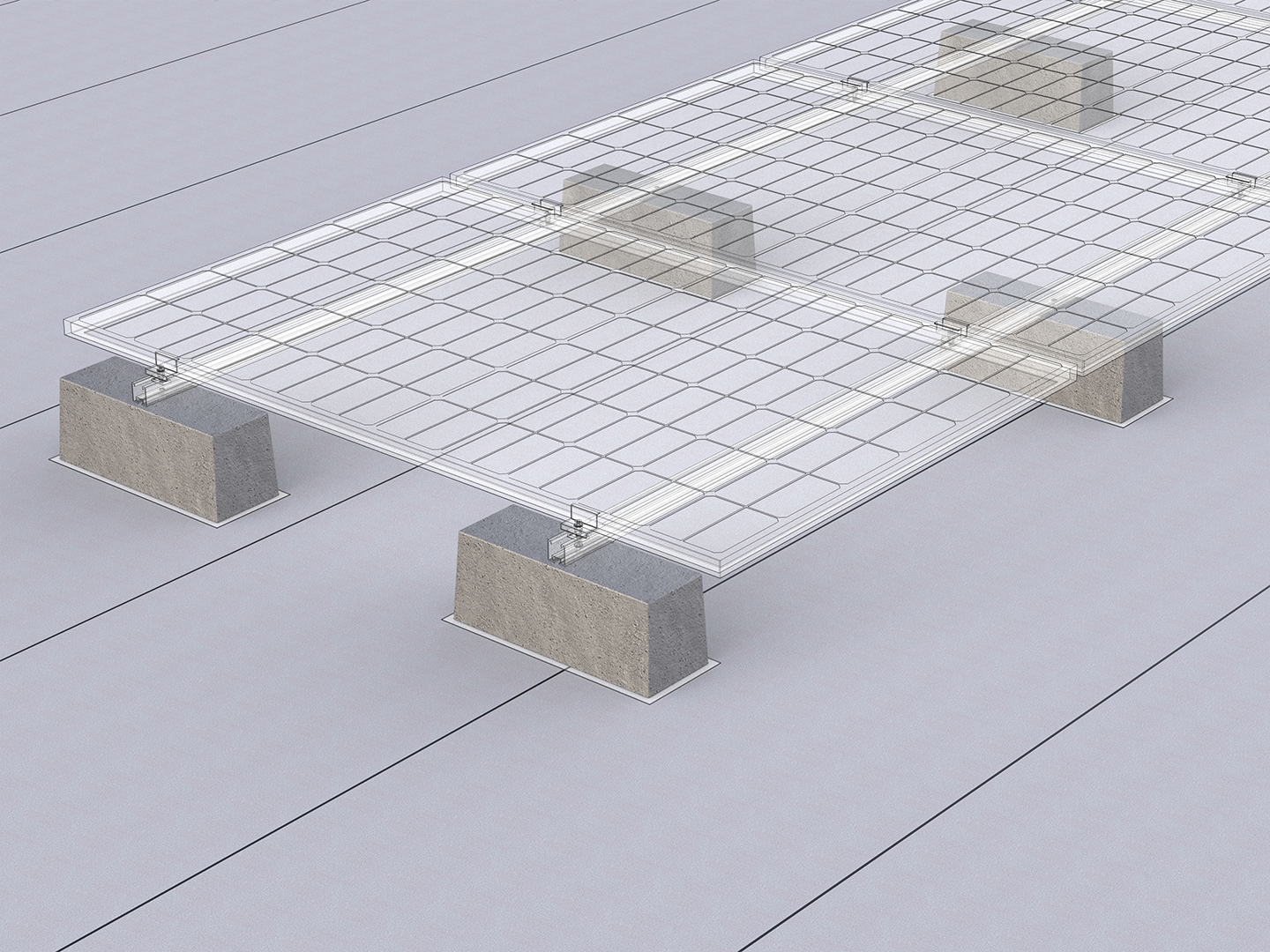

Concrete ballast 6° gradient

Ballasts supplied with a central M8x30 insert.

←
Module thickness (mm)	"Ω" jaw	"Z" jaw	To be used with screws
28	FVT3112	FVT9403	FVT1342
29 33	FVT3112	FVT3031	FVT1337
34	FVT3112	FVT3034	FVT1338
35 36	FVT3112	FVT3036	FVT1338
37 38	FVT3112	FVT3039	FVT1338
39	FVT3112	FVT3039	FVT1340
40 41	FVT3112	FVT3041	FVT1340
42 43	FVT3112	FVT3044	FVT1340
44	FVT3112	FVT3044	FVT1341
45 46	FVT3112	FVT3046	FVT1341
47 48	FVT3112	FVT3049	FVT1341
49	FVT3112	FVT3049	FVT1342
50 51	FVT3112	FVT3051	FVT1342

←				→
	Code	Reference	Angle
+	FVT9461	FVV-ZVC-6-52	6°	\| \|
Specifications: Pieces per package: 1 Weight (kg): 52
+	FVT9462	FVV-ZVC-6-28	6°	\| \|
Specifications: Pieces per package: 1 Weight (kg): 28

Concrete ballast 10° gradient

Ballasts supplied with a central M8x30 insert.

←
Module thickness (mm)	"Ω" jaw	"Z" jaw	To be used with screws
28	FVT3112	FVT9403	FVT1342
29 33	FVT3112	FVT3031	FVT1337
34	FVT3112	FVT3034	FVT1338
35 36	FVT3112	FVT3036	FVT1338
37 38	FVT3112	FVT3039	FVT1338
39	FVT3112	FVT3039	FVT1340
40 41	FVT3112	FVT3041	FVT1340
42 43	FVT3112	FVT3044	FVT1340
44	FVT3112	FVT3044	FVT1341
45 46	FVT3112	FVT3046	FVT1341
47 48	FVT3112	FVT3049	FVT1341
49	FVT3112	FVT3049	FVT1342
50 51	FVT3112	FVT3051	FVT1342

←				→
	Code	Reference	Angle
+	FVT9464	FVV-ZVC-10-62	10°	\| \|
Specifications: Pieces per package: 1 Weight (kg): 62
+	FVT9463	FVV-ZVC-10-25	10°	\| \|
Specifications: Pieces per package: 1 Weight (kg): 25
