Technical Characteristics

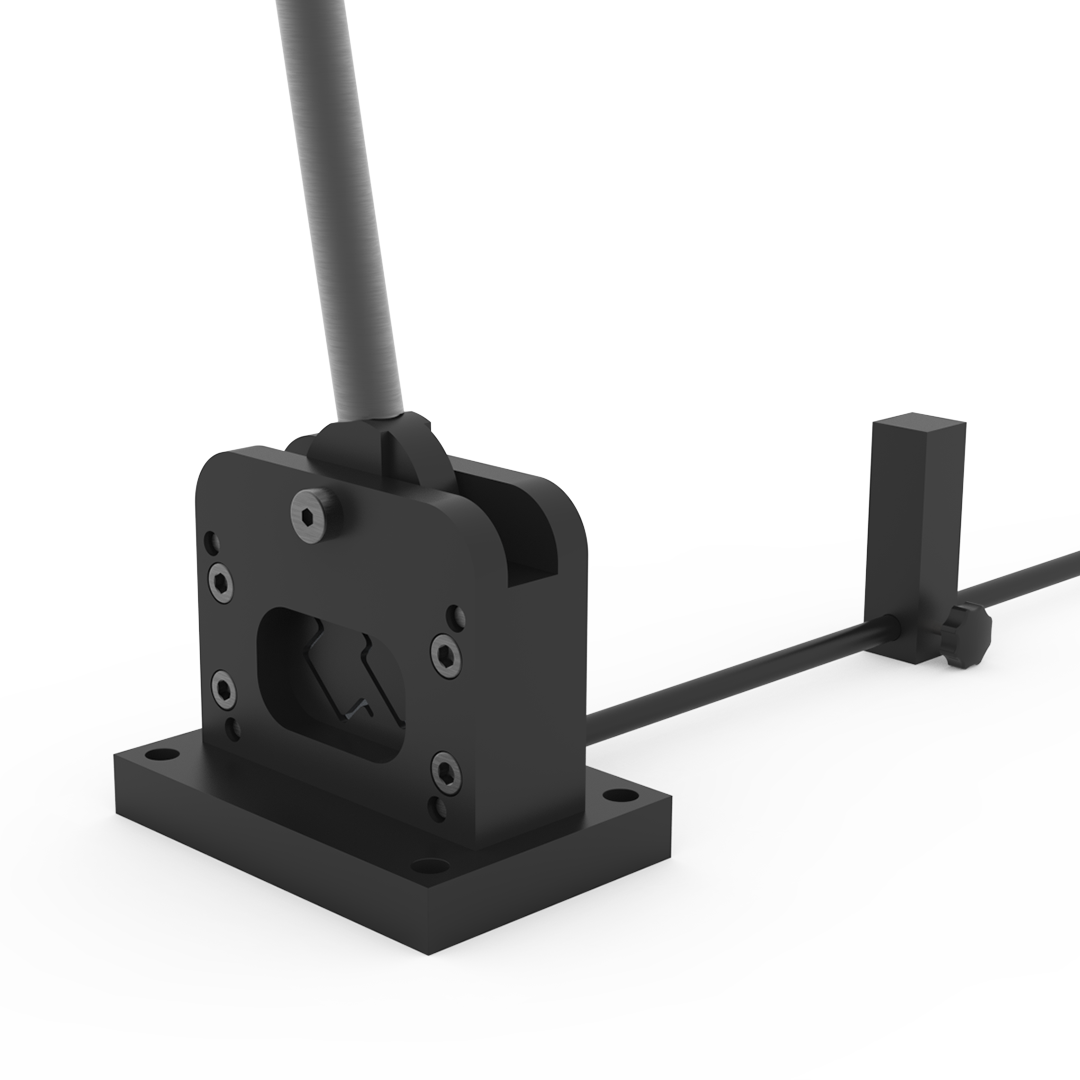

Cutting and punching of standardised rails and profiles.
Cutting is carried out without generating scrap or deformation of the bar and is clean and right-angled.
For cutting:
Symmetrical DIN rail type “Ω” 35×7,5 – 35×15
For punching with slotted hole:
symmetrical DIN rails type “Ω” 35×7,5 – 35×15.
Slotted hole 12×6,4 longitudinal or perpendicular to the length of the guide.
Ruler for cutting and punching measurement up to 1000 mm included.
Technical Characteristics
Cutting and punching of standardised rails and profiles.
Cutting is carried out without generating scrap or deformation of the bar and is clean and right-angled.
For cutting:
Symmetrical DIN rail type “Ω” 35×7,5 – 35×15
For punching with slotted hole:
symmetrical DIN rails type “Ω” 35×7,5 – 35×15.
Slotted hole 12×6,4 longitudinal or perpendicular to the length of the guide.
Ruler for cutting and punching measurement up to 1000 mm included.
← | → | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Reference | Pieces per package | Weight (kg) | ||||||||||||
| UTD3002 | UTD-t-02 | 1 | 9.00 | ||||||||||||
